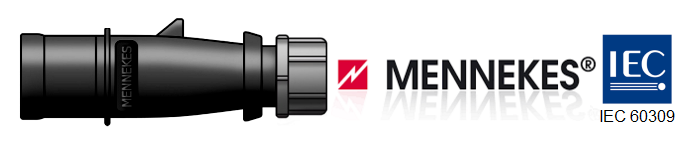

IEC 60309 560P5W 4-Pole, 5-Wire, 60 Amp, 347/600V Pin and Sleeve Plug
Mennekes 560P5W Plug, 60A, 600V, IEC 60309
Specifications:
| Plug Type | 560P5W (IEC 60309) |
| Amperage | 60 Amps |
| Voltage | 600V |
| Manufacturer Part # | ME560P5W |
| # of Poles / Wires | 4-Pole, 5 Wire |
| Wire AWG Compatibility | 4 AWG to 8 AWG |
| IP Rating | IP67 |
| Phase |
Three Phase |
| Color | Black |
| Certifications | UL Listed |
Applications: Attaches to the end of an electrical cord and plugs into a compatible 560C5W connector or 560R5W receptacle
Part # Explanation: 560P5W – 5 = # of Wires, 60 = Amps, P = Plug, 5 = Clock Postion of Ground, W = Watertight
