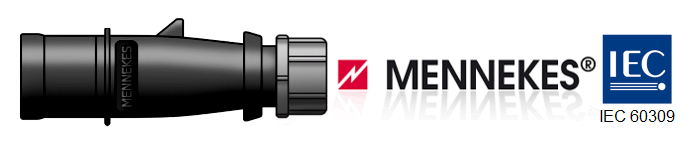

Mennekes ME460P5W 60A, 600V 3-Pole Plug

$233.00

IEC 60309 460P5W 3-Pole, 4-Wire, 60 Amp, 600V Pin and Sleeve Plug

SKU: ME460P5W

Mennekes 460P5W Plug, 60A, 600V, IEC 60309

320P6W IEC 309 Plug


Specifications:

Plug Type                        460P5W (IEC 60309)
Amperage 60 Amps
Voltage 600V
Manufacturer Part # ME460P5W
# of Poles / Wires                             3-Pole, 4 Wire
Wire AWG Compatibility 4 AWG to 8 AWG
IP Rating IP67
Phase
Three Phase
Color Black
Certifications UL Listed

 Applications: Attaches to the end of an electrical cord and plugs into a compatible 460C5W connector or 460R5W receptacle

 Part # Explanation: 460P5W  – 4 = # of Wires, 60 = Amps, P = Plug, 5 = Clock Postion of Ground, W = Watertight
