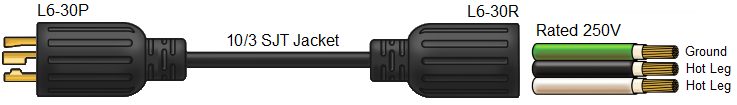

NEMA L6-30P to L6-30R Locking Power Cords
L6-30 Extension Cords – Molded, 30A, 250V, L6-30 Plug to L6-30 Connector
Specifications:
| Male Plug | L6-30P |
| Female Connector | L6-30R |
| Amperage | 30A |
| Voltage | 250V |
| Length | 3, 6, 10, 15, 25 Foot |
| Cable Voltage Rating |
300V |
| Wire Gauge | 10/3 |
| Jacket | SJT |
Documents: RoHS REACH Conflict Minerals Report (CMRT)
Technical Notes: UL Listed for the U.S. and Canada – File # E364972
Applications: Extend a NEMA L6-30P plug for RV, Generator, Servers, PDU, APC UPS, Marine applications
Also Known As: L6-30 Power Cords, L6-30 Cordset, NEMA L6-30 Plug to L6-30 Connector
Part number: IBX-5803M-X ( X = Length)
