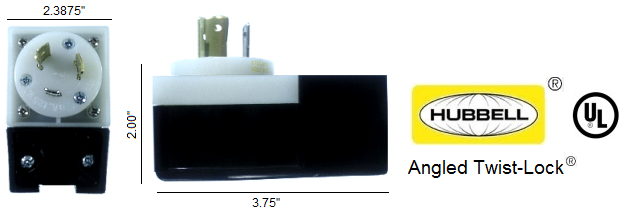

Angled Twist-Lock® plug body rated for 30A, 125V
Hubbell HBL2611A – L5-30P Twist-Lock Plug, Rated for 30A, 125V
Specifications:
| NEMA Designation | L5-30P |
| Amperage | 30A |
| Voltage | 125V |
| Poles | 2 |
| Wires | 3 |
| Contacts |
Brass |
| Housing Material |
Black Nylon |
| Certification | UL Listed, CSA Approved |
Technical Notes: UL Listed, CSA Certified
Applications: Twist-Lock® plug attaches to the end of a power cord, mates with an L5-30R connector or receptacle
