Adapt a NEMA L21-30P locking plug to IEC60309 pin and sleeve 530C9W connector

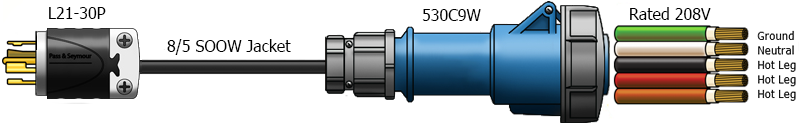

L21-30P to 530C9W Power Cord Plug Adapter
Specifications:
| Male Plug | NEMA L21-30P |
| Female Connector | IEC 60309 530C9W (Pin and Sleeve) |
| Amperage | 30 Amps |
| Voltage | 208V |
| Length | 1 Foot |
| Conductors | 5 wire |
| Wire Gauge | 8 AWG |
| Jacket | SOOW |
Technical Notes: Uses 8/5 SOOW premium grade water/oil resistant jacket – Ground is in the 9 O’Clock position
Applications: Convert a pin and sleeve 530C9W plug to a NEMA L21-30P twist lock plug
For use in areas of high moisture, generators, data centers, watertight marine applications
AKA: 530C9W Pin and Sleeve Adapter, 208V pin and sleeve power cord, 530C9W to L21-30P
Custom built to order
Part Number: IBX-2764
