L15-20R to ROJ Power Cord Whip, 20A, 250V, 12/4 SJOOW

$32.68$151.26

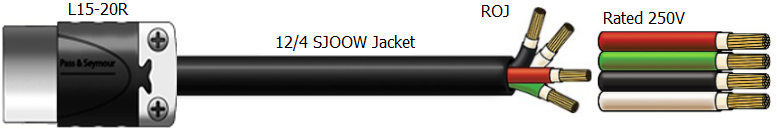

NEMA 20 Amp L15-20R to ROJ Power Cord Whips

SKU: IBX-9167-X

NEMA L15-20R to ROJ Power Cord Whips – 20A, 250V l15-20r to ROJ


Specifications:

Plug Type                        ROJ Stripped End / Or Blunt Cut
Connector Type L15-20R
Length                                             1-50 Foot
Amperage 20 Amps
Voltage                               250V
Number of Conductors 4
Wire Gauge 12/4 AWG
Jacket Type SJOOW
Temperature Rating
105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications RoHS Certified

Documents: RoHS  REACH  Conflict Minerals Report (CMRT)

Applications: Hardwire a 20A power cord into a piece of equipment or female connector in the field

 AKA: NEMA L15-20R power cable whips, L15-20R OEM cables, wire harness locking power cords

Available Options include cable crimps – Quick Disconnects, Ring Terminals, Fork / Spades – Email us for further customization



Part Number: IBX-9167-XX (XX = Length)
