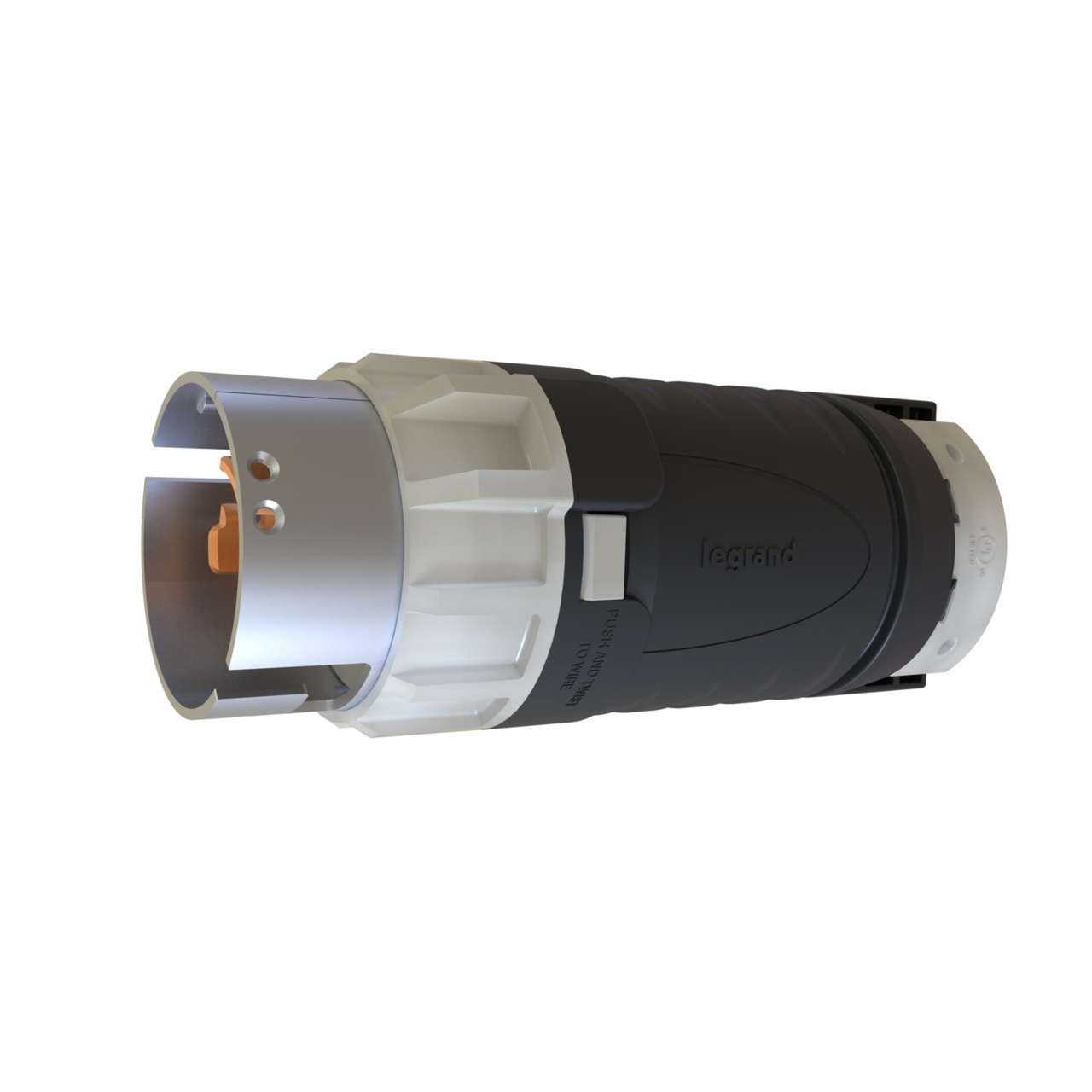

CS6361C 50A 125V Locking CA Style Male Locking Plug 50A/125V
Pass & Seymour CS6361C – 50 Amp, 125V, 2-Pole, 3-Wire Locking Plug
Specifications:
| NEMA Designation | CS6361C |
| Amperage | 50A |
| Voltage | 125V |
| Poles | 2-Pole |
| Conductors | 3-wire |
| Wire Gauge Range | 4 AWG to 8 AWG |
| Phases | Single Phase |
Technical Notes: UL listed
Applications: Mates with a CS6360C connector or CS6377 Inlet
AKA: CS6361C, 50 Amp plugs, California 50A connectors
