C20 to L5-30R Plug Adapter Power Cord

C20 to L5-30R Plug Adapter Power Cord

$27.48

Allows you to plug a device with a locking L5-30 plug into a C19 receptacle

SKU: IBX-1055

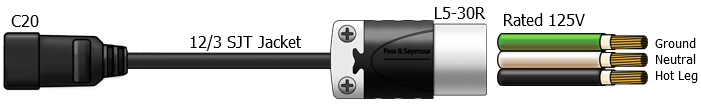

 C20 to L5-30R Power Cord Plug Adapter, 1 Foot, 20A, 125V

Specifications:

Plug Type                        C20
Connector Type L5-30R
Length 1 Foot (Custom Lengths Available)
Amperage 20 Amps
Voltage                               125V
Number of Conductors 3
Wire Gauge 12 AWG
Jacket Type SJT
Temperature Rating
 105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity

 Technical Notes:  Make sure your device doesn’t need more amps than the outlet allows

 Applications: Convert a NEMA locking L5-30 plug to an IEC 320 C20 power cord

Custom built to order

   Part Number: IBX-1055
