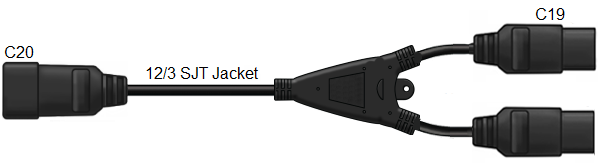

IEC 60320 C20 to C19 Y Splitter Cables
AC Power Cords, C20 to C19 Y Splitter Cords, 20A, 250V, 12/3 SJT Jacket
Specifications:
| Plug Type | IEC C20 |
| Connector Type | IEC C19 x 2 |
| Length | 3, 4, 6, 8, 10, 12, 15 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | UL Listed |
Documents: RoHS REACH Conflict Minerals Report (CMRT)
Applications: Plug two computers with a C20 male inlet on the power supply into a single C19 outlet on a PDU
AKA: C19 C20 Splitter Cords, IEC C20 to IEC C19 Splitter Cord, 2 Way Splitter Cable
Part Number: IBX-1634-XX (XX = Length)
