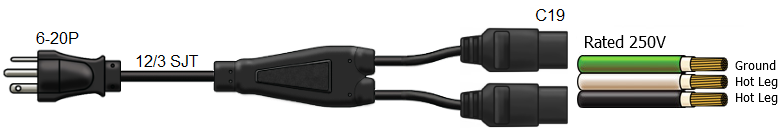

NEMA 6-20P to C19 Y Splitter Cables
AC Power Cords, NEMA 6-20P to C19 Y Splitter Cords, 20A, 250V, 12/3 SJT Jacket
Specifications:
| Plug Type | NEMA 6-20P |
| Connector Type | IEC C19 x2 |
| Length | 4 Feet (Custom Lengths Available – 24 hr. Turnaround) |
| Amperage | 20 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | UL Listed |
Applications: Plug two devices with a C20 male plug on the power supply into a single 6-20R outlet
AKA: C19 6-20P Splitter Cords, NEMA 6-20P to C19 Splitter Cord, 2 Way Splitter Cable
Part Number: IBX-2732-XX (XX = Length)
Fax Purchase Orders to 1-800-447-1381 or email [email protected]
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
