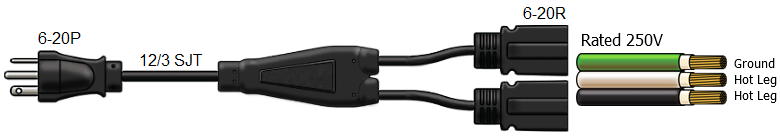

NEMA 6-20P to 6-20R Y Splitter Cables
AC Power Cords, NEMA 6-20P to 6-20R Y Splitter Cords, 20A, 250V, 12/3 SJT Jacket
.png)
Specifications:
| Plug Type | NEMA 6-20P |
| Connector Type | NEMA 6-20R x2 |
| Length | 4 Feet (2 Foot Lead + 2 Foot Legs) |
| Amperage | 20 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | UL Listed |
Applications: Plug two devices with a 6-20P male plug on the power supply into a single 6-20R outlet
AKA: 6-20R 6-20P Splitter Cords, NEMA 6-20P to 6-20R Splitter Cord, 2 Way Splitter Cable
Part Number: IBX-2730-04 (04 = Length)
