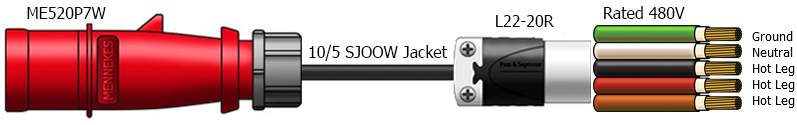

520P7W to L22-20R Power Adapter Cables
520P7W to L22-20R Power Cord Plug Adapter
Specifications:
| Male Plug | IEC 60309 520P7W |
| Female Connector | L22-20R |
| Amperage | 20A |
| Voltage | 480V |
| Length | 1 Foot |
| Conductors | 5 wire |
| Wire Gauge | 10/5 |
| Jacket | SJOOW |
Technical Notes: Make sure your device doesn’t need more amps than the outlet allows
Applications: Convert a NEMA locking L22-20 plug to fit a pin and sleeve 520C7W receptacle
Also Known As: L22-20P Adapter, L22-20 to IEC 309, 3 phase NEMA to pin and sleeve
Custom built to order
Part Number: IBX-3296
