3-Phase IP44 Pin and Sleeve power cable rated for 220V/380V – 240V/415V

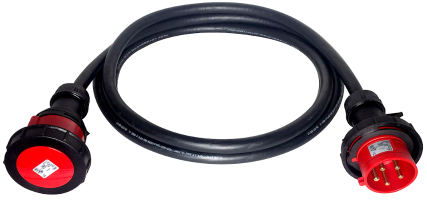

IEC 60309 516P6 to 516C6 3-Phase 16 Amp 415V Power Cords
Specifications:
| Plug Type | 516P6 |
| Connector Type | 516C6 |
| Length | Custom Lengths |
| Amperage | 16 Amps |
| Voltage | 220/380V / 240/415V |
| Number of Conductors | 5 |
| Wire Gauge | 12/5 AWG |
| Jacket Type | SOOW |
| Temperature Rating |
105º C |
| IP Rating | IP44 |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | UL Listed, RoHS |
Documents: RoHS REACH Conflict Minerals Report (CMRT)
Applications: Extend a 516P6 or 516P6W power cord plug
Part Number: IBX-46188-XX (XX = Length)
