NEMA 15 Amp 5-20 to C15 Server Power Cords
Power Cord, NEMA 5-20P Plug to C15 Connector, 15 Amps, 125V, 14/3 SJT
 |

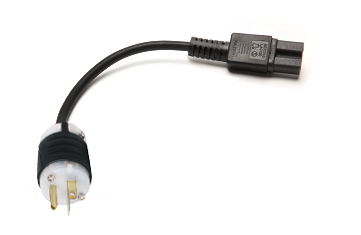

* 5-20P plug to C15 connector power cords
* Connect computers/servers to a rack pdu * Available in custom lengths * Rated for 15A and 125V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | 5-20P |
| Connector Type | C15 |
| Length | 1, 6, 10 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
.png "5-20P to C15 Power Cable")

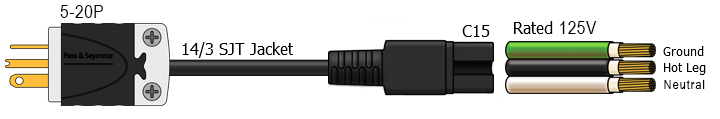

Tech Notes: 5-20P plug with a terminated C15 connector
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Custom built to order
Related Terms: C15 to 5-20P cable, NEMA 5-20P power cord, 5-20P to C15, C15 5-20P PDU cords
Part Number: IBX-4927-X (X = Length)

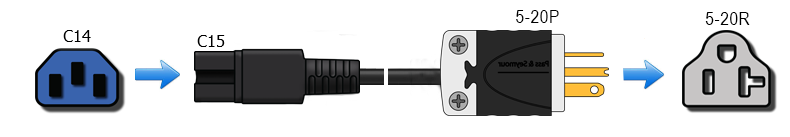

Application Shots
