NEMA 5-15P to 6-20R Power Adapter Cables

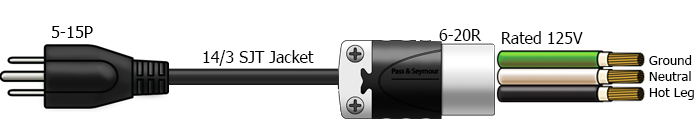

5-15P to 6-20R Power Cord Plug Adapter – 1 Foot, 15A, 125V
.png)
Specifications:
| Plug Type | 5-15P |
| Connector Type | 6-20R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn’t need more amps than the outlet allows
Applications: Adapt a 6-20P straight blade plug to fit a 5-15R outlet
Custom Options: SJOOW or SOOW Cable; Heavy Duty/Valise/Watertight/Corrosion Resistant ends; custom lengths
Custom built to order
Also Known As: 515 to 620 Adapter, 5-15 to 6-20 Pigtail, 6-20R to 5-15P plug adapter
Part Number: IBX-3753-XX (XX = Length)
