Allows you to plug a device with a L5-30P plug into an L14-20R socket

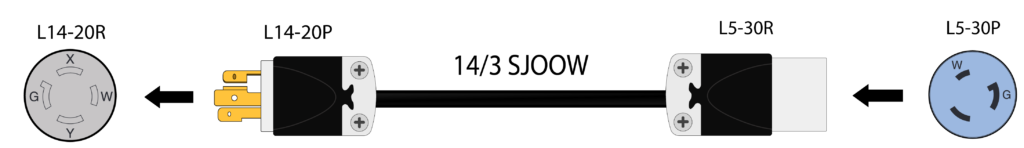

1 Foot NEMA L14-20P to L5-30R Twist Lock Power Cord Plug Adapter – 20A/125V
.jpg)
Specifications:
| Male Plug | L14-20P |
| Female Connector | L5-30R |
| Amperage | 20A |
| Voltage | 125V |
| Length | 1 Foot |
| Conductors | 3 wire |
| Wire Gauge | 12 AWG |
| Jacket | SJT |
Technical Notes: Make sure your device doesn’t need more amps than the outlet allows
Applications: Convert a NEMA straight blade L5-30P plug to fit into a NEMA L14-20R locking receptacle
Part Number: IBX-0041
Related Items:
L5-15P to 5-15/20R Plug Adapter L5-15P to L5-20R Plug Adapter
